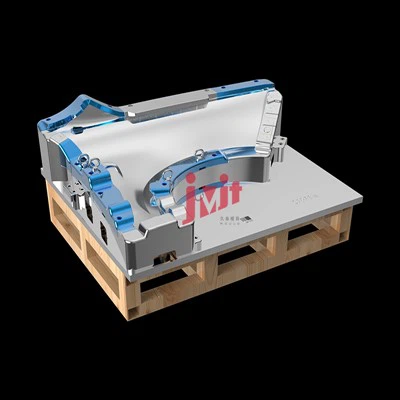

Carbon Fiber Mold

Your Professional Carbon Fiber Mold Supplier



JMJT is a professional manufacturer of GRP, SMC/BMC, GMT, LFT-D, HP-RTM, and PCM (thermoset plastic) compression molds, hot press molds, and plastic molds. We specialize in the design and manufacture of SMC/BMC sanitary ware molds, SMC/GMT/LFT-D/PCM automotive exterior trim molds, and other composite material molds.



High-Precision Manufacturing
By utilizing state-of-the-art CNC machining centers, EDM machines, and advanced surface treatment technologies, we ensure that every mold meets stringent tolerance requirements.



Certification
JMJT is ISO 9001 certified. ISO 9001 is an internationally recognized quality management system standard that helps organizations ensure their products and services consistently meet customer and applicable legal and regulatory requirements. It also promotes customer satisfaction through continuous improvement.



Sales Market
Our molds are exported to America, Europe, Africa, and Asia. We always consider quality as our foundation and customer service as our core principle. We sincerely look forward to cooperating with customers around the world.






Product Description





Product Features

Product name

Professional carbon fiber custom made machining OEM custom carbon fiber molded parts

Material type

T700 T800 carbon fiber with epoxy resin

Surface

Twill or plain glossy or matte

Production Process

Molding and Autoclave

Advantage

Light weight, high strength, corrosion resistance and anti-aging

Tensile modulus

≥300Mpa

Flexural modulus

≥350Mpa

Biggest size

250cmx250cmx400cm

If you need to customize any carbon fiber parts, please feel free to talk to us directly.



Can Meet Your Specific Requirements:

Regular Color:

Choose from a stunning range of colors, including classic black, vibrant green, sunny yellow, bold red, sleek grey, charming pink, regal purple, and pristine white.

Diameter:

Available in a wide range of sizes, from delicate 0.5mm to robust 25mm, with popular options like 1mm, 2.5mm, 5mm, 10mm, and more, to suit any project.

Customization:

Fully customize your fiber products in size, color, and length to seamlessly integrate with your unique design and functional needs.





Carbon fiber molding steps:







Preparations: Cutting and laying prepreg, carbon fiber mold and other supporting work, and clean up the carbon fiber mold to avoid dust and debris residue. Then apply a release agent after ensuring that the mold is clean and smooth to prevent the product from sticking to the mold too tightly after molding. The pre-prepared carbon fiber prepregs are superimposed layer by layer and pre-compacted to form a dense solid with a regular shape.




Mold filling and curing: Placing the stacked raw materials into the mold, closing the mold, applying certain pressure, temperature and setting curing time;




Cooling and demolding: Cooling the mold after hot pressing treatment for a period of time to the mold, then opening the mold for demolding treatment;




Processing and forming: The carbon fiber part after demolding needs to be cleaned, scrape off the remaining raw materials with a steel brush or copper brush, and polish the formed carbon fiber parts to make the surface smooth and tidy.




NDT and Final Inspection: According to production requirements, measure the size and accuracy of carbon fiber parts, and carefully check for product defects.







Carbon Fiber Automotive Components Parameter Table





Parameter Category

Value/Description

Example Components

Material Composition

Carbon fiber composite (carbon fiber + resin matrix, 50%-70% fiber content)

Hoods, roofs, spoilers, drive shafts, interior panels

Density

1.5-1.8 g/cm³

All carbon fiber components

Tensile Strength

3000-5000 MPa

Drive shafts, chassis reinforcements, brake pads

Elastic Modulus

200-300 GPa

Body frames, wheel rims

Heat Resistance

Long-term: 150-200°C; Short-term: 300°C

Engine bay components, brake systems

Thermal Expansion Coefficient

0.5-2.0×10-6°C (much lower than metals)

Precision parts (e.g., drive shafts, suspension components)

Weight Comparison

50%-70% lighter than steel; 20%-30% lighter than aluminum

Body panels (hoods, doors), wheel rims





Certificate





productcate-1-1





FAQ





Q: When can we deliver?

A: We can deliver within 7 days.

Q: How to calculate the price?

A: Quote based on specifications or drawings.

Q: Is there quality assurance?

A: Answer: Please believe in our profession, our goal is to view quality as life.

Q: How long does logistics take?

A: Different countries have different logistics durations, please rest assured that there is a tracking number for logistics.

Q: What format of drawing is needed?

A: Please provide DWG, IGS, DXF, SLPRT, STP.

Q: Is there a tolerance for the product and what is the tolerance value?

A: Carbon fiber products have a certain thickness tolerance, with a tolerance value of approximately+-0.1MM.

We're professional carbon fiber mold manufacturers in China, specialized in providing high quality customized service. If you're going to buy high-grade carbon fiber mold made in China, welcome to get quotation from our factory. For price consultation, contact us.
