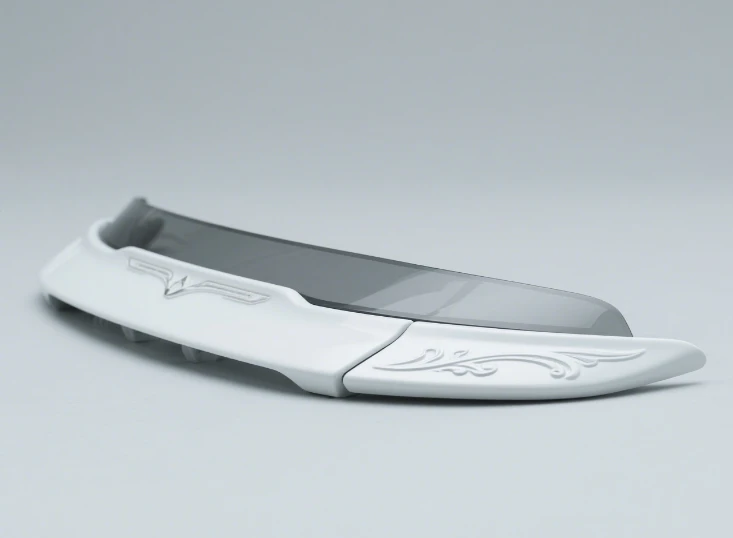

Deflector Plastic Mold



1. Forming Components: These are the parts in the mold that directly contact the plastic and determine the shape and size of the deflector, including the punch, die, and core, etc. For instance, in the injection mold for a truck deflector, the punch and die work together to form the external contour and internal structure of the deflector.



2. Gate System: This is the channel that introduces the molten plastic from the injection machine nozzle into the mold cavity, typically composed of the main runner, sub-runners, and gates, etc. For example, the gate system in a hot runner mold can precisely control the flow and distribution of the molten plastic, enhancing the molding efficiency and product quality.



3. Guiding Mechanism: This is used to ensure that the moving and fixed molds can accurately align during opening and closing, preventing misalignment. Common guiding mechanisms include guide pins and guide bushes. For instance, in a high-sealing dual-color deflector molding mold, guide pins installed around the bottom of the upper mold align with the positioning holes set around the surface of the lower mold, serving both guiding and positioning functions.



4. Demolding mechanism: A device that smoothly removes the formed deflector from the mold, such as ejector pins and push plates. Taking the injection mold for truck deflectors as an example, the demolding mechanism composed of electric push rods, electric rotating shafts, and movable plates can automatically push out the formed truck deflector from the mold, improving production efficiency and product quality.



5. Temperature control system: By setting cooling water channels or heating devices in the mold, the mold temperature is controlled to ensure the good molding of the plastic melt inside the mold. For example, in the high-sealing dual-color deflector forming mold, the inlet and outlet water pipes installed on the top of the upper mold are connected to the water jacket outside the nozzle to form a circulating water path, which can cool the mold.





1. Molding: The moving mold and the fixed mold accurately close under the action of the guiding mechanism, forming a sealed cavity, preparing for the injection of plastic melt.



2. Injection: The injection machine heats the plastic to a molten state and injects it into the mold cavity through the pouring system. The plastic melt flows in the cavity and fills it, forming the shape of the guide cover.



3. Holding pressure: After the plastic melt fills the mold cavity, the injection molding machine maintains a certain pressure to ensure that the plastic is compacted and re-melted in the mold cavity, thereby improving the dimensional accuracy and surface quality of the fairing.



4. Cooling: The temperature regulation system of the mold cools the plastic in the mold cavity, causing it to gradually solidify and take shape. During the cooling process, the plastic shrinks and adheres closely to the forming components of the mold.



5. Demolding: When the plastic cools to a certain extent, the demolding mechanism begins to operate, removing the formed fairing from the mold, completing one molding cycle.





1. Design: Based on the product drawings and technical requirements of the fairing, the mold structure is designed using computer-aided design (CAD) software, and the parameters such as the size, shape, parting surface, pouring system, and demolding mechanism of the mold are determined.



2. Processing: Using CNC machining centers, electrical discharge machining, wire cutting, etc., the various parts of the mold are processed and manufactured to ensure the dimensional accuracy and surface quality of the parts.



3. Heat Treatment: The key parts of the mold undergo heat treatment, such as quenching and tempering, to increase the hardness, strength, and wear resistance of the parts, and to extend the service life of the mold.



4. Surface Treatment: The forming surfaces of the mold are treated with chrome plating, nitriding, etc., to increase the surface hardness and smoothness, which is conducive to the plastic's demolding and prevents the mold from rusting.



5. Assembly: The processed parts are assembled according to the design requirements to form a complete mold, and then debugging and trial molding are conducted to inspect and optimize the performance and molding quality of the mold.





1. Automotive Industry: Used for manufacturing fairings for various types of vehicles such as trucks, buses, and cars, to reduce air resistance, lower fuel consumption, and improve the driving performance and economy of the vehicles.

2. Aerospace: Can be used to manufacture fairings for aerospace vehicles such as aircraft and rockets, to ensure the aerodynamic performance and flight safety of the vehicles.
