Methods To Improve Bathtub Mold Precision

The forming accuracy of bathtub molds directly determines product dimensional consistency, surface flatness, wall thickness uniformity, and assembly fit, making it a core aspect of bathroom product quality control. The mainstream forming processes for bathtubs include thermoforming, injection molding, and fiberglass compression molding, with precision errors primarily arising from mold design, machining, assembly, process fluctuations, and mold deformation. This article systematically outlines precision improvement strategies across five key dimensions-mold design, material selection and processing, assembly and adjustment, production processes, and inspection and maintenance-to comprehensively control forming errors.



I. Optimize Mold Structural Design to Prevent Precision Deviations at the Source



Mold design is the foundation of precision control; an inappropriate structure can lead to irreversible forming errors downstream. Therefore, optimization must be tailored specifically to the bathtub material and forming process.



1.Accurately calculate shrinkage rates and reserve dimensional

compensation. Materials such as acrylic, ABS, and fiberglass exhibit shrinkage during molding, which is the primary cause of dimensional deviations. By utilizing CAD and mold simulation software, the material filling and cooling shrinkage processes can be simulated to precisely determine shrinkage differences in critical areas such as the basin bottom, edges, and curved surfaces. Differential compensation amounts can then be applied to prevent issues like undersized dimensions and surface deformation.



2. Standardize key structural parameters. Optimize fundamental

structures such as draft angles, fillets, and parting lines. Standard mold draft angles should be ≥3°, and fillet radii ≥2 mm to prevent product deformation or dimensional deviation caused by ejection resistance. Properly position the parting line to avoid critical areas for appearance and load-bearing, ensuring smooth contact and eliminating defects such as misalignment, uneven wall thickness, and steps.



3. Optimize the injection, venting, and cooling systems properly

position gates and design runner dimensions to ensure uniform material filling of the mold cavity, avoiding localized material shortages or accumulation. Incorporate evenly distributed venting channels to eliminate defects such as bubbles and surface irregularities. Use fully covered, uniformly designed cooling channels to ensure consistent cooling across all mold areas, thereby minimizing product warpage and mold thermal deformation.



II. Strict Material Selection and Precision Machining to Ensure Mold Fundamental Accuracy



Mold material stability and machining precision form the hardware foundation for high-precision molding, directly determining cavity reference accuracy and dimensional consistency in mass production.



1. Select high-stability mold materials. For thermoforming and injection molding bathtubs, high-strength aluminum alloy is preferred, while compression molds use premium steel to ensure heat resistance, deformation resistance, and high wear resistance. The hardness of precision mold steel must reach HRC 48–52 to withstand deformation and wear caused by repeated opening and closing as well as heating cycles.



2. Improve the heat treatment and stabilization process. After mold machining, quenching and tempering must be performed to eliminate internal stresses and enhance structural stability. For high-precision molds, additional deep cryogenic treatment from -70°C to -196°C should be applied to completely remove residual stresses, prevent gradual deformation during mass production, and ensure long-term dimensional stability.



3. Employing precision CNC machining technology, the cavity surfaces are processed throughout using CNC micro-milling with a step size controlled at 0.005 mm to ensure surface curvature and flatness meet specifications. Machine temperature compensation is activated during the entire process, compensating 0.001 mm/m for every 1°C fluctuation in ambient temperature. Cutting forces are monitored in real time, and tools are replaced immediately if fluctuations exceed 5%, thereby preventing machining errors caused by tool wear.



4. Standardize surface treatment processes. Establish unified standards for cavity polishing and texture etching, ensuring the polishing direction aligns with the demolding direction to prevent dimensional deviations caused by excessive localized grinding. Surface hardness and wear resistance can be enhanced through processes such as chrome plating, nitriding, or PVD, thereby reducing wear-related errors during long-term mass production.





III. Precision Assembly and Adjustment to Eliminate Clamping and Opening Deviations



Mold assembly and adjustment can effectively eliminate issues such as misalignment, uneven gaps, and ejection deformation, making it a critical step in ensuring product forming consistency.



1. Upgrade the high-precision positioning and guiding system. Replace standard cylindrical locating pins with 6–8 conical locating pins, combined with precision pinhole machining, to control mold clamping misalignment within 0.05 mm. High-precision guide pillars and bushings are selected, with a clearance of ≤0.01 mm; for high-end molds, ball-type guide pillars are used to ensure smooth and stable opening and closing without deviation.



2. Optimize the ejection and clamping systems. Properly arrange the ejection mechanism to ensure synchronized and uniform force distribution on the ejector pins, preventing product deformation or indentation during ejection. Precisely calibrate the clamping force to match the molding process, avoiding excessive looseness that causes flash or wall thickness deviation, or excessive tightness leading to mold deformation or cavity misalignment.



3. Precise mold trial calibration before mass production. After assembly, conduct multiple trial runs to record key data such as product dimensions, curvature, and wall thickness, then compare against drawings to identify deviations. Make targeted fine adjustments to cavity, cooling, and runner structures to resolve issues like warping, dimensional deviation, and surface distortion. Mass production can only commence once all specifications meet requirements.



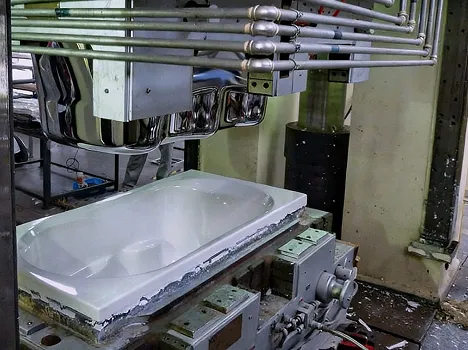

IV. Optimize molding process parameters to ensure stable mass production accuracy



Stable process parameters effectively reduce variations during mass production and prevent defects caused by abnormal temperature, pressure, or speed, thereby maintaining consistent molding precision.



1. Precise temperature control. Equipped with high-precision sensors, it continuously monitors the mold cavity and cooling system temperatures to ensure uniform and stable temperatures across all areas. Strictly controlling raw material preheating, molding temperature, and cooling setting time minimizes temperature fluctuations, preventing uneven shrinkage and warping deformation of products.



2. Maintain stable molding pressure and speed. Precisely control the molding pressure, vacuum strength during thermoforming, and material filling rate using advanced instrumentation to ensure consistent parameters throughout the process. This prevents insufficient pressure from causing incomplete forming and excessive pressure from resulting in flash or minor mold deformation, ensuring uniform product quality across all molds.



3. Standardize raw material pre-treatment. Before processing, bath tub molding materials and sheet materials should undergo constant temperature and humidity conditioning to eliminate internal stresses, stabilize material properties, reduce shrinkage and deformation errors at the source, and improve consistency in product accuracy across batches.





V. Enhance inspection and routine maintenance to sustain high precision over time



High-precision molds require precise inspection and regular maintenance to promptly correct minor deviations and prevent error accumulation that could lead to batch quality issues.



1. Employ digital precision inspection. Utilize 3D laser scanning equipment to capture cavity point cloud data, compare and analyze it against the 3D model, achieving a detection accuracy of up to 0.064 mm. This enables precise identification of minor deviations in surfaces, dimensions, and flatness, overcoming blind spots in manual inspection and facilitating accurate corrections.



2. Implement routine mold maintenance. During mass production, regularly clean cavity residues and oil stains to prevent impurities from affecting product accuracy and flatness. Periodically inspect wear conditions of guide, ejection, and positioning components, and promptly replace worn parts or adjust clearances. Use laser cladding technology to repair localized mold wear and deformation, with repair accuracy controlled within ±0.01mm.



3. Standardize mold storage and maintenance. For idle molds, implement anti-rust and anti-deformation protection, store them flatly, conduct periodic precision re-inspections to ensure accuracy upon reactivation, and extend the high-precision service life of molds.



VI. Core Summary of Precision Control



The core logic for improving bathtub mold precision is "controlling deviations at the source, establishing benchmarks during processing, ensuring stability in mass production, and maintaining long-term performance through maintenance." By optimizing structural design to avoid defects, relying on precision machining and assembly to establish a solid foundation for accuracy, standardizing processes to minimize production fluctuations, and utilizing digital inspection with routine maintenance to prevent error accumulation, product dimensional, surface curvature, and wall thickness deviations can be strictly controlled. This significantly improves yield rates and product assembly compatibility.
