Collaborative Upgrade Of SMC Manhole Covers And Supporting Compression-Molding Molds

With the full-scale advancement of urban renewal initiatives across China, supporting facilities for municipal underground pipe networks are undergoing a round of material innovation. Boasting anti-theft performance, corrosion resistance, light weight and high strength, SMC manhole covers have gained recognition in an increasing number of municipal projects, with their market application scope expanding continuously. As core equipment for product forming, the design and manufacturing standard of SMC compression-molding molds directly determines the load-bearing capacity, surface quality, production cycle and batch-product stability of SMC manhole covers. It constitutes a vital factor guaranteeing the in-service safety of manhole covers.



I. Product Performance



manhole covers are integrally cured and formed via high-temperature and high-pressure compression molding. Strictly complying with the EN124 load-bearing standard, they cover the full range of load classes from A15 to D400, and are well suited for diverse application scenarios including pedestrian walkways, urban arterial roads, industrial parks, coastal chemical plants, underground utility tunnels, and 5G communication inspection wells.



Compared with conventional municipal manhole covers, this composite product delivers remarkable advantages in multiple performance aspects. Containing no recyclable metal components, the material fundamentally eliminates theft risks and effectively prevents road safety hazards caused by missing manhole covers. It features outstanding resistance to acid, alkali and salt-spray corrosion, and maintains structural stability under harsh working conditions such as sewage pipe networks and coastal high-salt-humidity environments. Thanks to the inherent damping property of composite materials, vibration-induced noise generated under vehicle rolling is far lower than that of ductile-iron manhole covers, helping mitigate road-related environmental noise.



In terms of construction, operation and maintenance, SMC manhole covers weigh only 1/2 to 1/3 of iron manhole covers, substantially reducing labor intensity during on-site handling, opening and closing for inspection. Excellent insulating properties prevent electromagnetic-signal shielding, making them ideal for underground power and communication pipelines. Leveraging integral compression molding, anti-slip textures, warning characters and exclusive municipal logos can be formed in one step without secondary processing, satisfying practical demands for refined modern urban construction and management.





II. Technical Processes



For material improvement, the industry adopts high-content long-glass-fiber SMC sheets as core base materials. Different from unidirectional fiber structures, such sheets disperse and absorb impact stress from external forces in multiple directions. The manhole-cover plate and bottom reinforcing ribs are integrally molded in one compression-molding pass without secondary bonding or assembly, which greatly enhances structural integrity, stress-distribution performance and overall impact resistance.



After formula modification and optimization, the composite material maintains stable performance within the temperature range of -40 °C to +80 °C. It resists low-temperature embrittlement and damage in frigid northern winters, adapts to high-temperature and high-humidity climates in southern regions, and withstands long-term erosion by corrosive media such as hydrogen sulfide inside wells. The product avoids rusting and pulverization, solving long-standing industry challenges including corrosion-induced failure and limited service life of traditional cast-iron manhole covers buried underground.



Mold manufacturing is critical to the dimensional accuracy and operational reliability of finished SMC manhole covers. Through integral compression molding, the assembly clearance between cover frames and cover plates can be precisely controlled with uniform gap distribution, which greatly mitigates common municipal operation-and-maintenance problems such as impact noise and cover bouncing under repeated vehicle loads.



JMJT MOULD CHINA keeps advancing process iteration. It optimizes runner layout and venting structures of mold charging cavities to improve sheet filling performance and reduce internal porosity defects in finished products. While guaranteeing product quality, the company shortens compression-molding cycles, boosts mass-production efficiency, and supports the industrialization and popularization of SMC manhole covers.



III. Engineering Application



In practical engineering projects, SMC manhole covers fit a wide range of scenarios: pedestrian walkways, residential communities, industrial parks, municipal green belts and other zones with relatively moderate traffic loads. For sites with special explosion-proof and anti-corrosion requirements such as gas stations and chemical parks, their superior corrosion resistance and non-spark characteristics satisfy safety requirements for flammable and explosive environments. Their combined strengths of corrosion resistance, insulation and anti-theft performance are also fully demonstrated in coastal high-salt-fog zones, communication-and-power pipe-ditch projects, and sponge-city supporting construction.



Load-class selection must strictly match traffic conditions. SMC manhole covers of Class C250 and above can be installed on non-motor-vehicle lanes and community internal driveways to bear repeated loads from light motor vehicles. High-end Class D400 SMC products treated with special modification feature upgraded mechanical properties, fatigue resistance and weather resistance. Meeting load standards for municipal arterial roads, they can be deployed on major urban thoroughfares. In engineering practice, EN124 load classification shall be strictly followed for scenario matching. Over-service of low-load-grade products must be prohibited to eliminate road-safety risks arising from manhole-cover damage and failure.





IV. Diverse Product Categories



In structural forms, SMC manhole covers have evolved into multiple sub-categories including round, square, lock-equipped anti-theft and sealed types. Developed to meet real-world needs such as pipe-network operation safety and well-head sealing protection, structural configurations determine applicable working conditions and constitute key considerations for engineering selection.

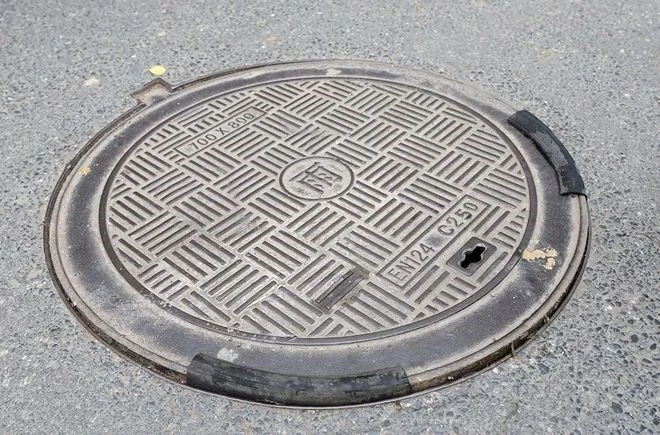

Round SMC manhole covers represent the mainstream option for municipal drainage pipe networks. Owing to uniform force distribution and low risk of falling through openings, they are widely used in rain-water and sewage inspection wells. They better disperse external loads from vehicles and pedestrians and facilitate routine operation, maintenance and inspection of underground water supply-and-drainage systems.

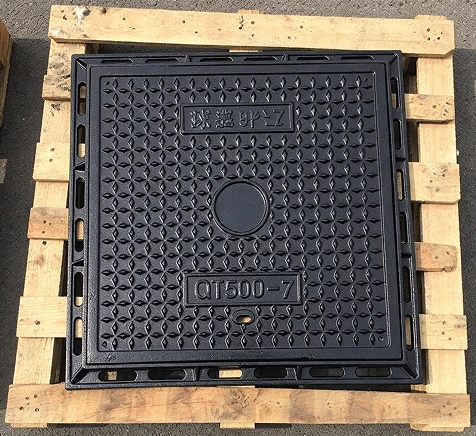

Square SMC manhole covers are highly compatible with pipe-ditch construction techniques. Mostly used for power and communication pipe ditches, they fit rectangular well openings and simplify cable laying and maintenance, supporting the construction of urban underground pipeline corridors.



Lock-equipped anti-theft manhole covers incorporate mechanical locking mechanisms to prevent unauthorized prying and opening of wellheads, thus avoiding safety hazards such as falling accidents and illegal operations caused by exposed wellheads. They are suitable for public areas with heavy foot traffic requiring access-permission control.



Sealed SMC manhole covers adopt optimized matching structures between cover plates and frames together with sealing assemblies to realize well-head water-proofing, leakage prevention and odor containment. They block rainwater inflow and escape of harmful underground gases, and are mainly applied to valve wells, oil-and-gas facility wellheads and other operating conditions demanding high sealing performance, safeguarding safe operation of stations and pipe networks.



Half of the market competitiveness of SMC manhole covers stems from SMC composite materials themselves, and the other half from high-precision compression-molding molds. Materials lay the performance foundation, while molds translate material potential into qualified municipal components. China's SMC manhole-cover industry must attach importance to the design and manufacture of front-end mold tooling. Driven by ongoing urban renewal and smart pipe-network construction across China, mold enterprises with capabilities in simulation-based design, precision machining and process delivery will serve as key enablers for industrial upgrading of composite municipal components, and promote large-scale application of high-performance SMC manhole covers in domestic and overseas infrastructure projects.
