Deeply Cultivate Molding Technology! Comprehensive Analysis Of Thermoplastic Composite Material Molding Process

With the upgrading of the new materials industry towards high-end, green, and large-scale, thermoplastic composites, featuring advantages such as recyclability, high toughness, high molding efficiency, and excellent mechanical properties, are gradually replacing thermosetting composites and traditional metal materials, becoming the core material selection in fields such as aerospace, new energy vehicles, rail transit, and high-end equipment. And the compression molding technology, as the core process for mass production of thermoplastic composites, with its high production efficiency, precise product dimensions, good consistency, and controllable costs, has become the key bridge connecting thermoplastic composites and end products. Unlike the compression molding of thermosetting composites, the compression molding of thermoplastic composites does not require a long curing process, allowing for rapid molding and recycling, which is more in line with the needs of large-scale production.

Core Principle: The Underlying Logic of Compression Molding of Thermoplastic Composites

The compression molding of thermoplastic composites is essentially a closed-loop process of "thermal melting - pressure molding - cooling and setting". The core lies in utilizing the thermoplastic nature of thermoplastic resins (reversible heating melting and cooling solidification), where thermoplastic composite material blanks (such as SMC/BMC molding compounds, fiber-reinforced thermoplastic prepregs, etc.) are placed in a mold preheated to a set temperature, and a certain pressure is applied through a press to melt, flow, and fill the mold cavity within the blank. Subsequently, it is cooled and set, and the mold is removed to obtain the desired product. The entire process does not require a long curing reaction, has a short molding cycle, can be continuously produced, and the products can be recycled and reprocessed, making it one of the best processes for large-scale mass production of thermoplastic composites.

Compared with the compression molding of thermosetting composites, the compression molding of thermoplastic composites has three core differences:

First, the molding mechanism is different. Thermoplastics rely on the physical changes of resin melting and cooling, while thermosetting composites rely on the chemical changes of resin cross-linking reactions.

Second, the molding cycle is different. The molding cycle of thermoplastic compression molding is usually 2-10 minutes per piece, much shorter than that of thermosetting compression molding, which is 30 minutes to 2 hours per piece.

Third, the recyclability is different. Thermoplastic products can be heated and melted for recycling and reuse, while thermosetting products cannot be recycled.

In addition, the blanks for thermoplastic composite compression molding can take various forms such as prepregs and molding compounds, adapting to the performance requirements of different products, and offering greater flexibility.

From the core process perspective, the compression molding of thermoplastic composites mainly consists of four steps, each closely linked, and each step directly affects the mechanical properties and dimensional accuracy of the product, and is also a core control link in industry practice:

Step 1: Blank Preparation: The core is to adapt to the product requirements and select the appropriate blank type and specification. The blanks for thermoplastic composite compression molding mainly include sheet molding compounds (SMC), bulk molding compounds (BMC), and continuous fiber prepregs - SMC/BMC are suitable for large-scale, medium and small-sized product production and have lower costs; continuous fiber prepregs (such as carbon fiber reinforced PP, PA prepregs) are suitable for high-end products and have better mechanical properties. At the same time, the size of the blank needs to be cut according to the product size and performance requirements, and the uniformity of the blank thickness needs to be controlled to avoid molding defects caused by uneven blanks. Additionally, some blanks need to be preheated in advance to improve the melt flowability and ensure smooth filling of the mold cavity.

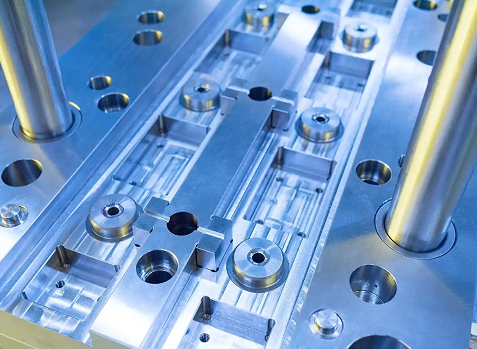

Step 2: Mold Preheating and Installation: Mold temperature is one of the core parameters for molding and needs to be precisely controlled according to the resin type. Different thermoplastic resins have different melting temperatures, and the mold preheating temperature needs to be controlled above the resin melting temperature and below the decomposition temperature. For example, the mold temperature for PP resin is controlled at 160-180°C, and for PPS resin, it is controlled at 280-320°C. The mold needs to be installed on the press in advance to ensure precise mold closing, and a mold release agent needs to be applied to the mold surface to prevent the product from adhering after cooling and ensure smooth demolding, protecting the product's appearance quality. Step 3, Compression Molding: This is the core process of the entire procedure, with a focus on controlling three key parameters: pressure, temperature, and time. The prepared preform is placed into a preheated mold, and the press is activated to close the mold. A set pressure (typically 10-50 MPa) is applied, while maintaining the mold temperature. Under the pressure, the preform melts and flows to fill the entire mold cavity, expelling air within the cavity to ensure a dense structure of the product. The compression molding time should be adjusted based on the thickness of the product and the type of resin, usually ranging from 2 to 10 minutes, to ensure the preform is fully melted and flows evenly, avoiding defects such as material shortage and bubbles.

Core Process Points: Three Key Parameters Determine Product Performance and Quality

Although compression molding of thermoplastic composites may seem simple, it actually requires extremely precise control of process parameters. Among them, mold temperature, compression pressure, and compression time are the three core control parameters, known in the industry as the "three elements" of compression molding. Even the slightest deviation can lead to defects such as material shortage, bubbles, warping, and delamination in the product, affecting its performance and service life. Combining industry practical experience and the latest technological achievements, we break down the three core process points, balancing professionalism and practicality:

Point 1: Mold Temperature - Precise Control for Melting and Shaping Effects. Mold temperature directly affects the melting degree of thermoplastic resin and the cooling and shaping effect, being a core parameter influencing product performance. If the temperature is too high, it can cause resin decomposition, yellowing of the product surface, and excessive dimensional deviation; if it is too low, the resin will not melt fully, with poor fluidity, unable to fill the mold cavity, and prone to defects such as material shortage and delamination. In practice, the mold temperature should be precisely set based on the type of resin and the thickness of the product. Meanwhile, zone temperature control technology should be adopted to reduce the temperature difference between the inside and outside of the mold cavity, eliminate uneven curing, and prevent residual stress in the product, avoiding warping and cracking. For example, when molding thin-walled products, the mold temperature can be appropriately increased to enhance resin fluidity; when molding thick-walled products, the temperature can be appropriately reduced to avoid deformation due to demolding before the internal part is fully cooled and cured.

Point 2: Compression Pressure - Reasonable Control for Dense Structure and Precise Dimensions. The core function of compression pressure is to make the preform closely adhere to the mold cavity, expel air, and promote resin melting and flow, ensuring a dense structure and precise dimensions of the product. If the pressure is too low, the preform cannot fully fill the mold cavity, easily resulting in material shortage, bubbles, and loose structure; if it is too high, it will increase equipment energy consumption, damage the mold, and may cause residual stress within the product, affecting its mechanical properties. In practice, the compression pressure should be adjusted based on the type of preform, product structure, and dimensions, typically ranging from 10 to 50 MPa - higher pressure is required for compression molding materials with a large compression ratio and resins with high melt viscosity; for simple-shaped, thin-walled products, the pressure can be appropriately reduced. Additionally, gradient pressure technology should be used to gradually increase the pressure, avoiding sudden pressure increases that could cause preform splashing or mold damage.

Point 3: Compression Time - Scientific Setting for Balancing Efficiency and Performance. Compression time refers to the period from when the mold is fully closed until the preform melts, flows, and cools and sets in the mold, directly affecting the curing degree and production efficiency of the product. If the time is too short, the resin will not melt fully, and the cooling and setting will be insufficient, leading to warping, deformation, and poor mechanical properties of the product; if it is too long, it will extend the production cycle, increase energy consumption, and may cause the product to over-cure, resulting in defects such as darkening and bubbling on the surface. In practice, the compression time should be set comprehensively based on mold temperature, product thickness, and resin type, typically ranging from 2 to 10 minutes - the higher the mold temperature and the thinner the product, the shorter the compression time; the higher the resin melt viscosity and the thicker the product, the longer the compression time. Moreover, appropriately extending the compression time can increase the crystallinity and mechanical properties of the product, but excessive extension should be avoided to prevent increased costs. In addition to the three core parameters, the quality of the blank, the precision of the mold, and the selection of the release agent will also affect the molding effect. The blank must ensure uniform thickness, no impurities, and even fiber distribution to avoid product defects caused by blank issues; the mold needs to be processed with high-precision technology to ensure accurate cavity dimensions and a smooth surface, reducing dimensional deviations and appearance defects of the product; the release agent should be selected to be compatible with the thermoplastic resin, applied evenly, to avoid damaging the product surface during demolding, and not affect the subsequent processing of the product.

Multi-field application analysis: From civilian to high-end, unlocking the value of all scenarios

Thermoplastic composite material compression molding technology, with its advantages of high efficiency, recyclability, precise dimensions, and controllable costs, has been widely applied in multiple fields such as aerospace, new energy vehicles, rail transit, high-end equipment, and civilian products. The application focuses, product types, and performance requirements vary across different fields. Through practical case studies, this article comprehensively analyzes its application value:

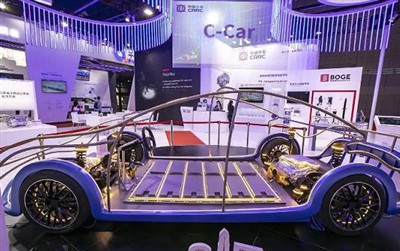

Application Scenario One: New Energy Vehicle Field - Lightweight, High Toughness, Facilitating Energy Conservation and Emission Reduction. The demand for lightweight, high toughness, and recyclability in new energy vehicles is increasingly urgent. Thermoplastic composite material compression molded products, with their advantages of light weight, high strength, good impact resistance, and recyclability, have become the core choice for automotive lightweight upgrades. They are mainly applied in products such as car bumpers, engine hoods, door inner panels, battery casings, and chassis components.

Application Scenario Two: Aerospace Field - High Performance, High Precision, Adapting to Harsh Conditions. The aerospace field has extremely high requirements for the mechanical properties, dimensional accuracy, and temperature resistance of composite materials. Through process optimization, thermoplastic composite material compression molding technology can achieve large-scale production of high-performance products. It is mainly applied in products such as unmanned aerial vehicle rotor blades, aircraft door components, satellite brackets, and aviation engine accessories.

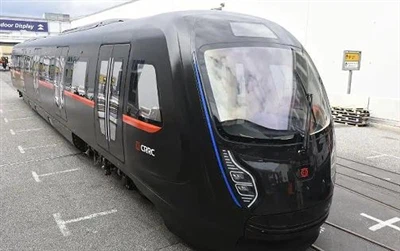

Application Scenario Three: Rail Transit Field - Wear Resistance, Anti-aging, Enhancing Operational Safety. Rail transit equipment needs to withstand complex loads, vibrations, and environmental erosion for long periods, requiring materials with high wear resistance, anti-aging, and impact resistance. Thermoplastic composite material compression molded products can perfectly meet these requirements and are mainly applied in products such as interior panels, seat frames, handrails, and sound insulation boards of rail transit carriages.

Application Scenario Four: Civilian and High-End Equipment Field - Low Cost, Mass Production, Adapting to Diverse Demands. In the civilian field, thermoplastic composite material compression molded products are widely used in products such as appliance casings, bathroom fixtures, and fitness equipment, replacing traditional plastic and metal products due to their low cost, high molding efficiency, and aesthetic appearance. In the high-end equipment field, they are applied in products such as robot casings, medical device accessories, and precision instrument casings, meeting the usage requirements of high-end equipment with their high precision and high toughness.

In summary, thermoplastic composite material compression molding technology is the core support for the large-scale application of thermoplastic composites and an important technology for promoting the upgrade of high-end manufacturing. From technical principles to process key points, from multi-field applications to cutting-edge breakthroughs, this technology, with its advantages of high efficiency, recyclability, and precise controllability, is gradually replacing traditional molding processes and unlocking more application values. With the continuous iteration of core technologies and the acceleration of domestic substitution, China's thermoplastic composite material compression molding technology will gradually shift from "catching up and running parallel" to "running parallel and leading", empowering fields such as aerospace, new energy vehicles, and rail transit, and injecting strong momentum into the high-quality development of China's new materials industry.
