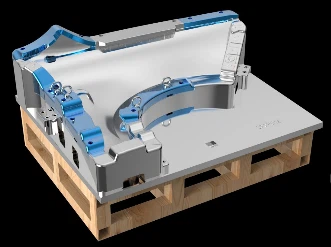

How To Improve The Performance Of Carbon Fiber Molds?

I. Optimizing the Raw Material System: Enhancing Basic Performance from the "Source"

The core raw materials of carbon fiber molds include carbon fiber reinforcement materials, resin matrices, and additives. The selection of these materials directly determines the basic performance of the molds, and adjustments must be made according to the molds' application scenarios (such as temperature, pressure, and product precision requirements).





Carbon Fiber Reinforcement Materials

Improving strength/stiffness and optimizing lay-up efficiency: Select high-modulus carbon fibers (e.g., T800 and T1100 grade carbon fibers). Compared with conventional T700, these can increase mold stiffness by 20%-30% and reduce deformation during molding.

Hybrid fiber reinforcement: Incorporate a small amount of glass fiber or aramid fiber into local high-stress areas (e.g., mold edges, parting surfaces) to balance cost and impact resistance.

Optimizing fiber form: Use unidirectional (UD) fabrics to improve strength in specific directions, or multi-axial fabrics (e.g., ±45°, 90°) to achieve isotropy and avoid local stress concentration.

Adding functional additives: Incorporate nano-sized silica (SiO₂) or boron nitride (BN) particles to improve the thermal conductivity of the resin (accelerating mold heating/cooling efficiency) and wear resistance.



Core Materials/Accessories (Reducing Mold Weight and Enhancing Local Support Performance)

For large-scale molds (e.g., wind turbine blade molds, automotive chassis molds), lightweight foam cores (e.g., PMI foam) or honeycomb cores can be embedded inside. This reduces mold weight by 30%-50% without decreasing stiffness while improving buckling resistance. Metal inserts (e.g., aluminum alloy, stainless steel) can be embedded in parting surfaces to enhance wear resistance and sealing precision.



II. Improving Molding Processes: Enhancing Mold Precision and Internal Quality

1. Optimization of Prepreg Molding Process (Mainstream Process)

Prepreg molding (including autoclave molding and vacuum bag molding) is the primary manufacturing method for high-end carbon fiber molds. The core optimization points are as follows:

(1) Lay-up Design and Execution

Design the lay-up sequence based on mold stress simulation (e.g., Finite Element Analysis, FEA). For example, increase the number of UD fabric layers in high-stress areas and use "stepped lay-up" at corners to avoid interlayer wrinkles.

Control environmental humidity (≤50% RH) and temperature (20-25℃) during lay-up to prevent prepreg moisture absorption and internal bubble formation. Use "scrapers + rollers" for auxiliary compaction, and perform intermediate compaction every 2-3 layers to reduce porosity (target porosity ≤1%).



(2) Precise Control of Curing Parameters

Adopt a "segmented heating curing curve", e.g.: low temperature (60-80℃) holding for 1-2 hours (to remove volatile components) → heating to curing temperature (120-180℃, determined by resin type) → holding for 3-4 hours (to ensure complete resin cross-linking) → slow cooling (cooling rate ≤2℃/min, to avoid internal stress).

Control the pressure uniformity (0.5-0.8MPa) during autoclave molding, and use "pressure sensors" to monitor the mold surface pressure in real time to prevent defects caused by insufficient local pressure.



2. Adopting Advanced Molding Technologies

Resin Transfer Molding (RTM) process: Suitable for molds with complex structures (e.g., molds with ribs and grooves). Resin is injected into preformed fiber blanks at low pressure, which can reduce errors in manual lay-up, improve mold dimensional precision (tolerance ±0.1mm), and achieve a smoother surface (Ra ≤0.8μm).

Automated Tow Placement (ATP)/Automated Tape Laying (ATL) technology: For large-scale molds (e.g., aero-engine nacelle molds), automated tow placement machines (ATL) or tape laying machines (AFP) are used to achieve precise carbon fiber placement (positioning accuracy ±0.5mm). This avoids deviations in manual lay-up, improves lay-up efficiency and consistency, and reduces performance fluctuations caused by human operations.

III. Strengthening Post-Processing and Surface Modification: Enhancing Durability and User Experience

1. Precision Machining (Improving Dimensional Precision)

After curing, molds need to be trimmed via CNC machining (using diamond tools) for key parts such as parting surfaces, positioning holes, and mounting grooves to ensure dimensional tolerances meet design requirements (e.g., parting surface flatness ≤0.05mm/m).

Perform "fine polishing" on the mold cavity surface: sequentially use 800#, 1200#, and 2000# sandpaper for wet-dry sanding, then conduct mirror polishing with polishing paste (e.g., alumina polishing paste). The final surface roughness can be reduced to Ra ≤0.2μm, meeting the molding needs of high-precision products (e.g., optical components, aerospace structural parts).



2. Surface Coating Modification (Enhancing Functionality)

Release coating: Apply polytetrafluoroethylene (PTFE) coating or silicone-based release agent to reduce adhesion between the product and the mold, lower release force (to avoid product damage or mold surface scratches), and improve coating wear resistance (capable of withstanding over 500 release cycles).

Wear/corrosion-resistant coating: For molds in contact with corrosive resins (e.g., certain epoxy, vinyl ester resins), apply ceramic coatings (e.g., Al₂O₃, ZrO₂) or cermet coatings (e.g., CrN) to improve surface hardness (Hv ≥800) and chemical resistance, extending mold service life by 2-3 times.

Thermal conductive coating: Apply graphene thermal conductive coating to the mold cavity or back. This increases the thermal conductivity (from 0.2W/(m·K) of conventional resin to 1-2W/(m·K)), accelerates heat transfer during molding, and shortens the product curing cycle (improving production efficiency by 15%-20%).





3. Internal Defect Repair (Enhancing Structural Integrity)

For small pores detected after curing (e.g., diameter <0.5mm), use the "resin infusion + vacuum degassing" method for repair: inject low-viscosity epoxy resin (with curing agent added) into the pores, remove bubbles in a vacuum environment, and then cure at low temperature to restore local strength.

For interlayer delamination defects, adopt "ultrasonic testing positioning + carbon fiber patch repair": sand and clean the surface of the delaminated area, attach a prepreg patch (2-3 times larger than the defective area), and then cure via local hot pressing (e.g., hot press iron) to ensure the strength of the repaired area is not less than 90% of the original structure.

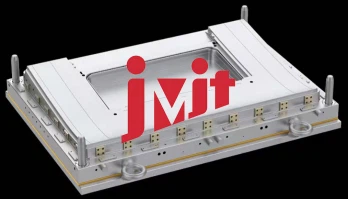

IV. Optimizing Structural Design: Matching Application Scenarios and Reducing Stress Concentration

The structural design of carbon fiber molds must consider the product shape, molding process (e.g., mold opening/closing method, heating/cooling requirements), and application environment (e.g., temperature, pressure). Optimization through design reduces stress concentration and improves overall performance.

1. Avoiding Sharp Structures and Optimizing Fillets and Transitions

Design sufficiently large fillets (R ≥3mm) at the corners of mold cavities and the roots of ribs to avoid stress concentration caused by sharp angles (cracks are prone to form at sharp angles).

Adopt a "gradual change design" for mold thickness transition areas (thickness change rate ≤1:5) to prevent uneven curing shrinkage (which easily causes warpage) due to sudden thickness increases/decreases.

2. Integrating Heating/Cooling Systems to Improve Temperature Stability

For molds requiring precise temperature control (e.g., composite material hot-press molding molds), embed metal heating tubes (e.g., stainless steel heating tubes) or cooling channels (e.g., copper channels) inside. Control the channel spacing at 50-80mm to ensure mold surface temperature uniformity (temperature difference ≤±2℃) and avoid product defects caused by local temperature differences.

Design channels to avoid "dead zones" (e.g., closed corners) to ensure smooth circulation of heating/cooling media and improve temperature control response speed.

3. Enhancing Mold Support and Positioning

Design "reinforcing ribs" or "support feet" (spacing ≤1.5m) at the bottom of large-scale molds to prevent deformation caused by self-weight during hoisting or use.

For mold opening/closing molds, design precise positioning mechanisms (e.g., guide pillars, guide bushes). Control the fit clearance between guide pillars and guide bushes at 0.01-0.02mm to ensure centering during mold opening/closing and avoid product flash caused by parting surface misalignment.

4. Mold Storage Requirements

Store molds in a dry, constant-temperature environment (temperature 15-25℃, humidity ≤50% RH) to avoid direct sunlight (preventing resin aging). Use dedicated brackets to support large-scale molds to avoid deformation due to long-term pressure.
