A Brief Discussion On SMC Bathroom Mold Technology
Jul 01, 2026
1. Fundamental Properties of SMC Material Suitable forBathroom Applications
SMC, or Sheet Molding Compound, is a composite material made by combining unsaturated polyester resin, long glass fibers, mineral fillers, and functional additives. It is a thermosetting composite material that is formed through high-temperature and high-pressure molding using a mold. It is naturally suitable for use in bathroom environments that are humid, corrosive, have heavy loads, and are prone to leakage:
1.Zero water absorption, waterproof and mold-resistant: The dense integrated structure has no capillary pores, with an almost zero water absorption rate. It won't leak water or get moldy even when soaked in water for a long time, effectively resolving the problems of water seepage through ceramic gaps and moisture-induced deformation of wooden cabinet bodies.
2. Lightweight and High-Strength: The density is only 1.8g/cm³, which is one-third of that of ceramics and one-fifth of cast iron bathtubs. It can be easily moved by one person; it is internally reinforced with glass fibers, providing excellent resistance to pressure and impact. The base can bear a weight of 300kg without deforming.
3. Corrosion-resistant and easy to clean: Resistant to the corrosive effects of toilet cleaner and shower gel, the surface has a smooth and dense gel coating with high Barium Hardness, making it difficult for scale and scratches to form; It can also be added with silver ions for antibacterial properties, suitable for use in hospitals and hotel public bathrooms.
4. High degree of mold forming freedom: The mold can be used to create curved surfaces, anti-slip patterns, flow guiding slopes, water-blocking edges, reinforcing ribs, and embedded holes all in one process. There is no need for secondary bonding, thus reducing the risk of water leakage.
5. Thermal insulation and quietness: The heat conduction is slow, and the water temperature in the bathtub cools down 20% slower than acrylic. There is no cold ceramic touch during showering and washing, and the water splash noise is even lower.
II. Core Structure and Design Key Points of SMC Bathroom Mold
SMC bathroom products are large-sized deep cavity compression molds. They are equipped with 315T - 2000T hydraulic hot press machines. The mold design directly determines the appearance, strength and production stability of the finished products. The mainstream production is carried out in the Huangyan mold industrial belt:
1.Mold material selection and surface treatment
The cavity is made of 718, P20 and H13 pre-hardened mold steel, which can withstand high pressure and high temperature. The sanitary ware products require mirror polishing + chrome plating. After molding, the products are as shiny as ceramics, without blemishes or flow marks, thereby reducing the cost of later polishing.
2. Design of the Three Core Systems
Constant temperature control system: The mold temperature is stable at 130–150℃. The mold is equipped with 8–12mm circulating water channels with a spacing of 20–30mm, ensuring uniform curing of the sheet material and preventing local whitening and warping of the product;
Multi-level exhaust structure: The bathroom base and the curved surface of the basin are complex. Exhaust grooves are set on the parting lines and dead corners to discharge the air inside the mold, preventing bubbles, material shortages, and dark cracks;
Ejection and reinforcing rib cavity: The bottom of the bathtub and the shower tray are integrally formed with reinforcing ribs, and the mold is correspondingly provided with thicker cavities; multiple points of ejection for balanced demolding to prevent deformation of thin-walled products.
3. Exclusive design advantages of bathroom molds
1. Integrated cavity: It can simultaneously form anti-slip bumps, water-draining slopes, integrated water-blocking edges, faucet reserved holes, and floor drain installation slots. This process eliminates the need for bonding procedures.
2. Optimization of parting line: The mold line is hidden at the bottom of the product's side, with no obvious seams on the front, achieving a beauty level comparable to ceramic sanitary ware.
3. Customized texture cavity: The mold can engrave marble, tiles, and frosted textures, and the finished product does not require a second skin application.
III. Mainstream SMC Mold Bathroom Product Categories

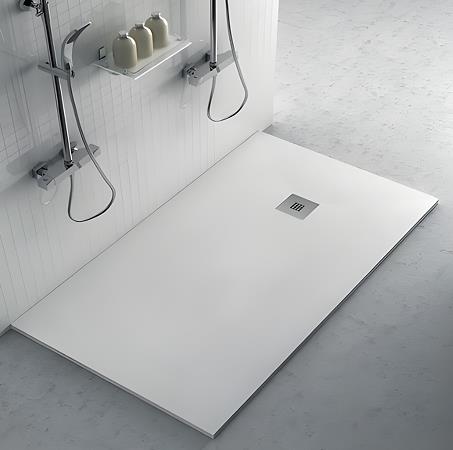

1.Integrated shower base (core component of integrated bathroom)
One-piece molding with automatic drainage slope of 1°–3°, peripheral water-blocking edges, surface anti-slip dot pattern, no joint gaps. It can be completed on the same day through dry construction and is widely used in apartment buildings, affordable housing, and hotel prefabricated bathrooms.
2. SMC countertop and bathroom integrated countertop
Single basin, double basin, and laundry sink molds are fully covered, and the seamless integrated countertop eliminates water accumulation and leakage on the surface; the bottom reinforcement structure is suitable for wall-hung bathroom cabinets, completely replacing easily moldy solid wood and artificial stone.
3. SMC Bathtub Mold Products
Both the independent cylinder and the embedded bathtub can be molded. The ergonomic backrest surface is formed in one piece. They are lightweight, have good insulation properties, and the transportation and installation costs are much lower than those of cast iron and ceramic bathtubs.
4. SMC bathroom wall panels and related components
The bathroom wall panel mold can be made with stone-like texture, and when combined with the base plate, it can form a complete bathroom set. There are also small SMC mold components such as toilet bases, urinal partitions, and bathroom equipment shells, which are insulated and safe and compatible with smart bathrooms.
IV. Complete Production Process of SMC Molded Bathroom Ware
1. SMC sheet cutting and laminated material pre-treatment;
2. The mold is preheated to the process temperature and a release agent is sprayed;
3. The sheet is laid out, the mold is closed and pressure is applied at high pressure (8–15 MPa) for curing;
4. The molding process is completed with constant temperature and pressure for 3–8 minutes;
5. The mold is opened, the edges are trimmed, holes are drilled, and it is inspected and stored.
Compared to the 72-hour firing process for ceramics, SMC with a single mold and single piece only takes a few minutes. The production efficiency has significantly increased, with lower energy consumption and no pollution from kilns.
V. Analysis of Advantages and Disadvantages of SMC Mold Bath Products
advantage
1. High production efficiency, controllable batch cost, suitable for large-scale batch procurement in engineering projects;
2. Integrated molding without leakage, waterproof performance far exceeds traditional tiles and acrylic;
3. Lightweight reduces building load-bearing capacity, ideal for old building renovation and prefabricated buildings;
4. Flexible design, custom molds available for irregular bathrooms and barrier-free anti-slip bases;
5. Environmentally friendly without radioactivity, recyclable, suitable for public spaces such as hospitals and schools.
Existing shortcomings
1.The initial investment for molds is high. The processing time for large-sized chassis and bathtub molds is long, and the cost for small-batch customization is relatively high.
2. The molding process is difficult to produce extremely thin-walled products, and it is not as good as injection molding for small and intricate shapes.
3. The high-end matte finish and special glaze texture still fall short of those found in high-end ceramic sanitary ware. The popularity of this product in the home decoration retail market needs to be further enhanced.
4. Due to the long-term use of the mold under high temperature and high pressure, the polished surface is prone to wear and tear. Therefore, regular chromium plating repair is necessary.
VI. Industry Development Trends
1.The rapid growth of prefabricated bathrooms has driven the demand for molds: The widespread adoption of standardized full bathrooms in affordable housing and hotel apartments has led to a continuous increase in orders for large-sized SMC base plates and wall panels molds.
2. Advanced mold upgrading: Five-axislinkage processing, nano mirror surface polishing, and integrated molding of antibacterial textures have become the mainstream techniques.
3. Development of Functionally Combinated Products: Gradual mass production of products featuring constant-temperature heating, barrier-free and non-ramp-accessible chassis, and integrated bathroom cabinet assembly molds;
4. Low-cost modified SMC materials with matching molds: Low shrinkage and high-fill SMC sheets are widely used, reducing mold exhaust and warping defects, and extending the service life of the molds.
VII.Conclusion
The SMC mold bathroom products leverage the dual advantages of composite materials and molding technology to address the common problems of traditional bathrooms such as leakage, heaviness, moldiness, and long construction periods. They are the core solution for bathroom components in prefabricated buildings. The manufacturing precision and temperature control exhaust design of the molds directly determine the quality of the finished products. With the continuous optimization of the tooling process and material formulation, SMC bathroom mold products will further expand their application scope in the field of tooling support and personalized home decoration.
